STAGE 97:
Dinozord cannons 1.
Pic 1: Fit the connecting piece 97.3 inside the cannon half 97.2 as shown and fix with 2 x PWM screws.
Pic 2: Make two sets the same.
Pic 3: Fit the connecting piece 97.4 inside the cannon half 97.1 as shown and fix with 2 x PWM screws.
Pic 4: Make two sets the same.
Pic 5: Store the parts safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,181 Points: 15,692 Location: ipswich
|
STAGE 98:
Dinozord cannons 2.
Pic 1: Peel the backing paper off and fit the mount bushings 2 x 98.6 to the two cannon mounts 2 x 98.3.
Pic 2: Fit the parts together as shown.
Pic 3: Retrieve one of the gun parts 97.2 from the previous stage and fit the cannon mount, fixing it with 1 x PWM screw.
Pic 4: Fit the other gun half 97.2 to the cannon mount and fix with 1 x PWM screw.
Pic 5: Press-fit the other two gun halves 97.1 onto the assembly.
Pic 6: Fit the cannons into the lower half of the Dinozord tail 98.1
.
Pic 7: Fit the top of the tail 98.2 and fix with 2 x PB screws from above and below.
Pic 8: Fit the trim panel 98.4 into the tail part 98.1.
Pic 9: Fit the tail trim 98.5 into the tail part 98.2.
Store the assembly safely.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,181 Points: 15,692 Location: ipswich
|
STAGE 99:
Dinozord body 3.
Due to a missing stage 77 this part cannot be done at this time.
It will be completed when the missing parts arrive.
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,181 Points: 15,692 Location: ipswich
|
STAGE 100:
Tyrannosaurus tail 1.

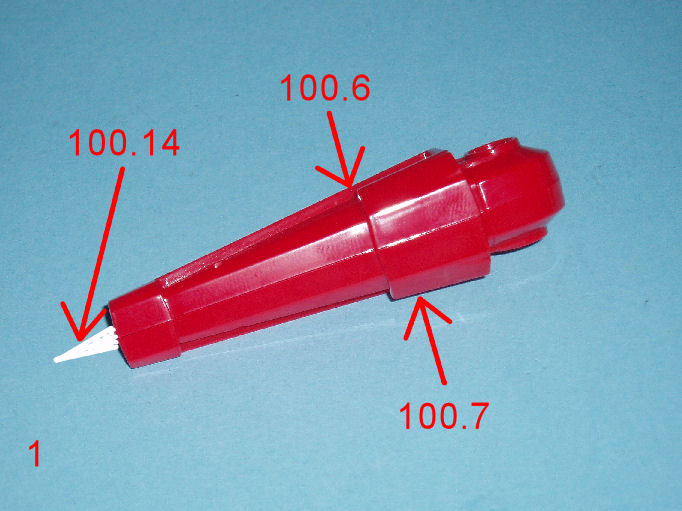

Pic 1: Press-fit the tail parts 100.6 and 100.7 together, trapping the point 100.14 in the end.

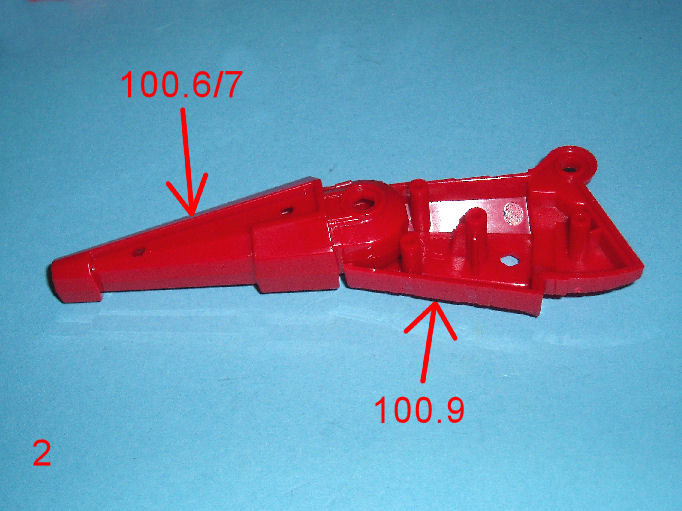

Pic 2: Fit the lower tail part 100.9 to the assembly as shown.

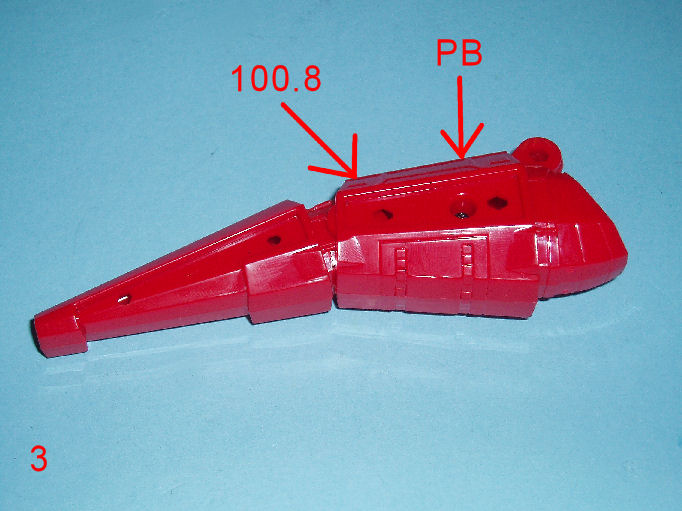

Pic 3: Fit the upper tail part 100.8 and fix with 1 x PB screw through the central hole.

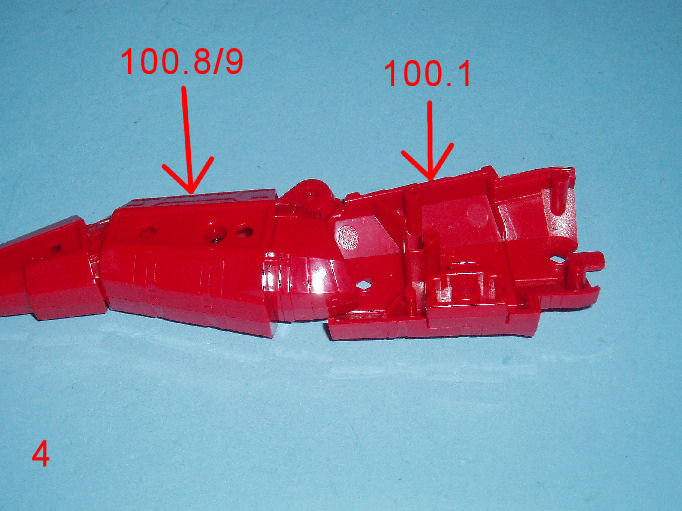

Pic 4: Fit the lower tail part 100.1 to the assembly as shown.

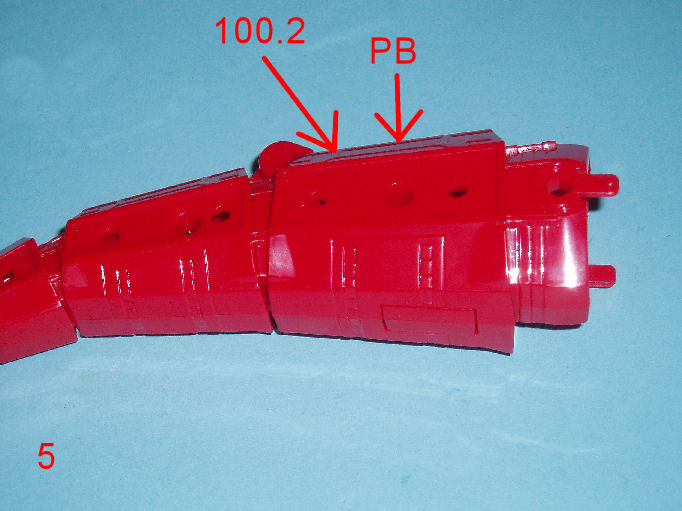

Pic 5: Fit the upper tail part 100.2 and fix with 1 x PB screw through the central hole.

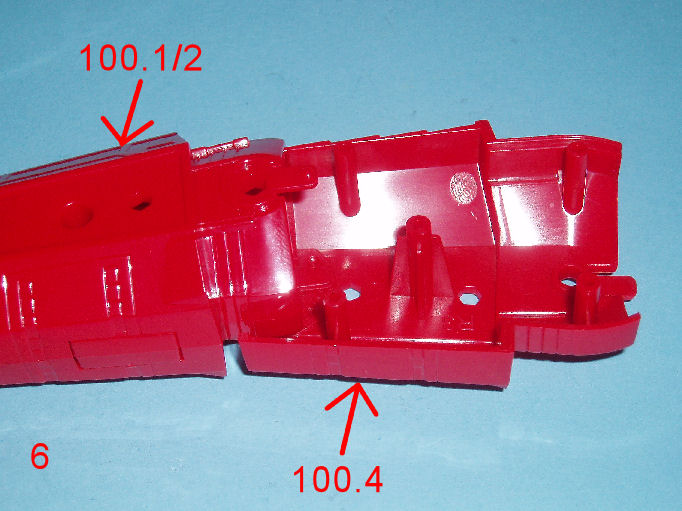

Pic 6: Fit the lower tail part 100.4 to the assembly as shown.

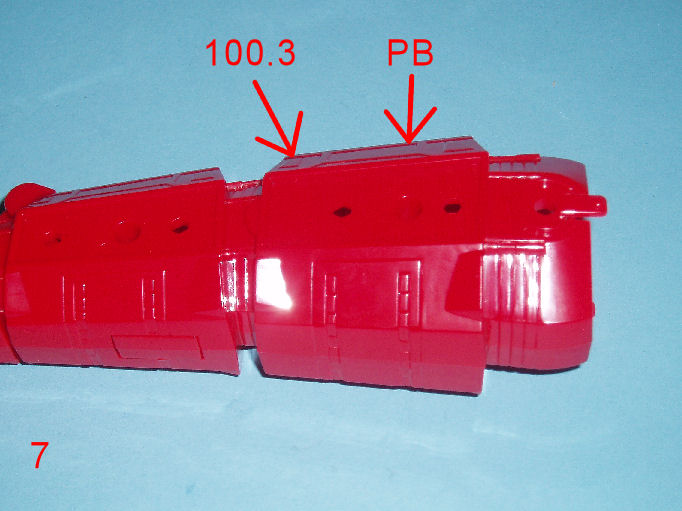

Pic 7: Fit the upper tail part 100.3 and fix with 1 x PB screw through the central hole.

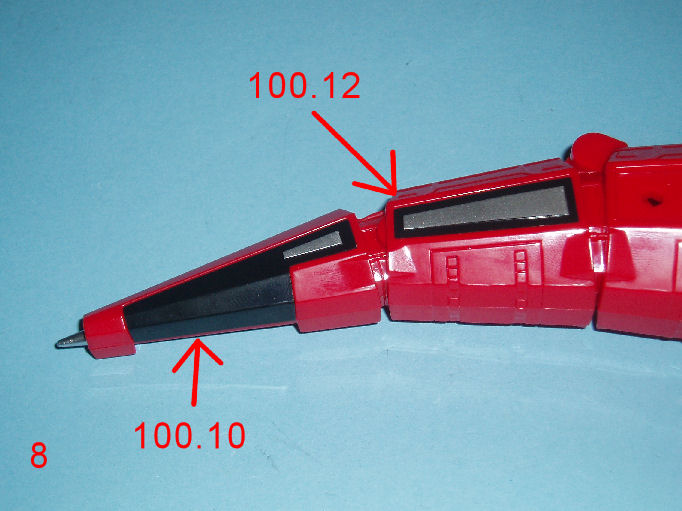

Pic 8: Press-fit the trim pieces 100.10 and 100.12 into the tail.

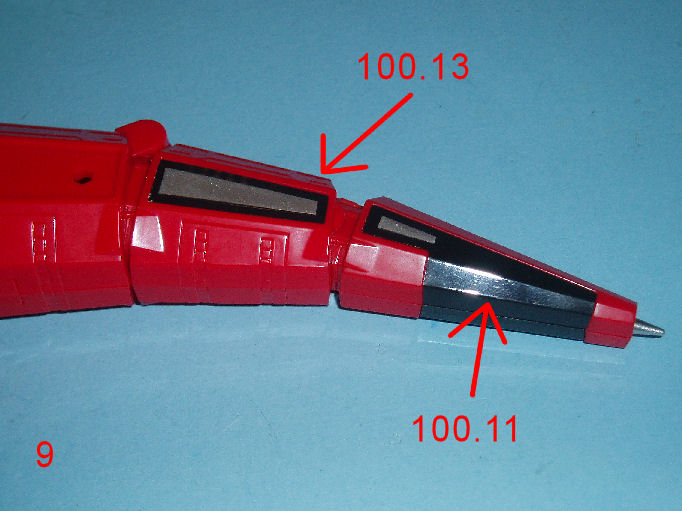

Pic 9: Press-fit the trim pieces 100.11 and 100.13 into the other side of the tail.
Store the assembly safely.
roymattblack attached the following image(s):
|
|
|
|
