STAGE 97:
Dinozord cannons 1.
Pic 1: Fit the connecting piece 97.3 inside the cannon half 97.2 as shown and fix with 2 x PWM screws.
Pic 2: Make two sets the same.
Pic 3: Fit the connecting piece 97.4 inside the cannon half 97.1 as shown and fix with 2 x PWM screws.
Pic 4: Make two sets the same.
Pic 5: Store the parts safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,188 Points: 15,713 Location: ipswich
|
STAGE 98:
Dinozord cannons 2.
Pic 1: Peel the backing paper off and fit the mount bushings 2 x 98.6 to the two cannon mounts 2 x 98.3.
Pic 2: Fit the parts together as shown.
Pic 3: Retrieve one of the gun parts 97.2 from the previous stage and fit the cannon mount, fixing it with 1 x PWM screw.
Pic 4: Fit the other gun half 97.2 to the cannon mount and fix with 1 x PWM screw.
Pic 5: Press-fit the other two gun halves 97.1 onto the assembly.
Pic 6: Fit the cannons into the lower half of the Dinozord tail 98.1
.
Pic 7: Fit the top of the tail 98.2 and fix with 2 x PB screws from above and below.
Pic 8: Fit the trim panel 98.4 into the tail part 98.1.
Pic 9: Fit the tail trim 98.5 into the tail part 98.2.
Store the assembly safely.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,188 Points: 15,713 Location: ipswich
|
STAGE 99:
Dinozord body 3.
Due to a missing stage 77 this part cannot be done at this time.
It will be completed when the missing parts arrive.
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,188 Points: 15,713 Location: ipswich
|
STAGE 100:
Tyrannosaurus tail 1.
Pic 1: Press-fit the tail parts 100.6 and 100.7 together, trapping the point 100.14 in the end.
Pic 2: Fit the lower tail part 100.9 to the assembly as shown.
Pic 3: Fit the upper tail part 100.8 and fix with 1 x PB screw through the central hole.
Pic 4: Fit the lower tail part 100.1 to the assembly as shown.
Pic 5: Fit the upper tail part 100.2 and fix with 1 x PB screw through the central hole.
Pic 6: Fit the lower tail part 100.4 to the assembly as shown.
Pic 7: Fit the upper tail part 100.3 and fix with 1 x PB screw through the central hole.
Pic 8: Press-fit the trim pieces 100.10 and 100.12 into the tail.
Pic 9: Press-fit the trim pieces 100.11 and 100.13 into the other side of the tail.
Store the assembly safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,188 Points: 15,713 Location: ipswich
|
STAGE 101:
Tyrannosaurus tail 2.
Pic 1: Retrieve the tail assembly from stage 100 and fit the lower panel 101.2 as shown.
Pic 2: Fit the upper panel 101.1 in place and fix with 1 x PB screw through the centre hole.
Pic 3: Fit the trim panels 101.3, 101.5 and 101.7 to the left side of the tail.
Pic 4: Fit the trim panels 101.4, 101.6 and 101.8 to the right side of the tail.
Store the assembly safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,188 Points: 15,713 Location: ipswich
|
STAGE 102:
Tyrannosaurus tail 3.
Pic 1: Retrieve the main body assembly and locate the tail panel 102.2.
Fit the panel to the body connector 58.3 as indicated.
Fix with 1 x PB screw.
Pic 2: Fit the connecting block 102.3 as shown.
Pic 3: Fit the tail assembly from stage 101 over the lower post on the panel 102.2.
Pic 4: Fit the top tail panel 102.1 and fix with 2 x PB screws.
Pic 5: Press-fit the trim panel 102.4 in place.
Pic 6: On the other side, press-fit the trim panel 102.5 in place.
Store the model safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,188 Points: 15,713 Location: ipswich
|
STAGE 103:
Tyrannosaurus left leg 1.
Pic 1: Fit the hexagonal end of the spindle 103.5 into the locating hole in the foot connector 103.3.
Pic 2: Fit the inner knee joint 103.1 into the leg panel 103.2 as shown.
Pic 3: Fit the kneecap 103.4 in place as shown.
Pic 4: Store the parts safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,188 Points: 15,713 Location: ipswich
|

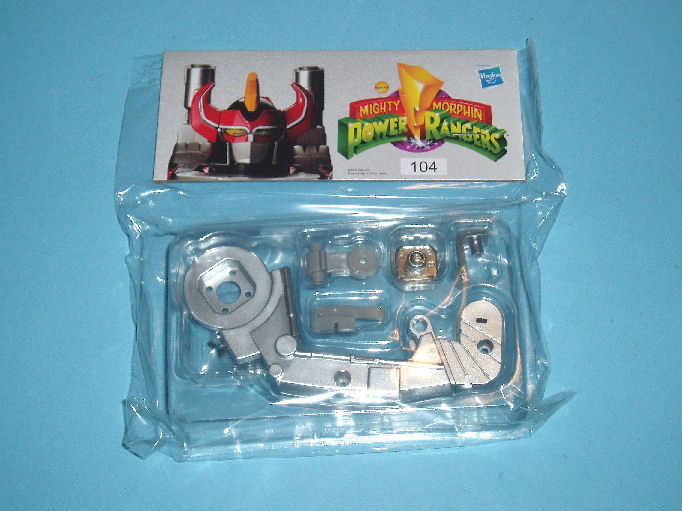

STAGE 104:
Tyrannosaurus left leg 2.

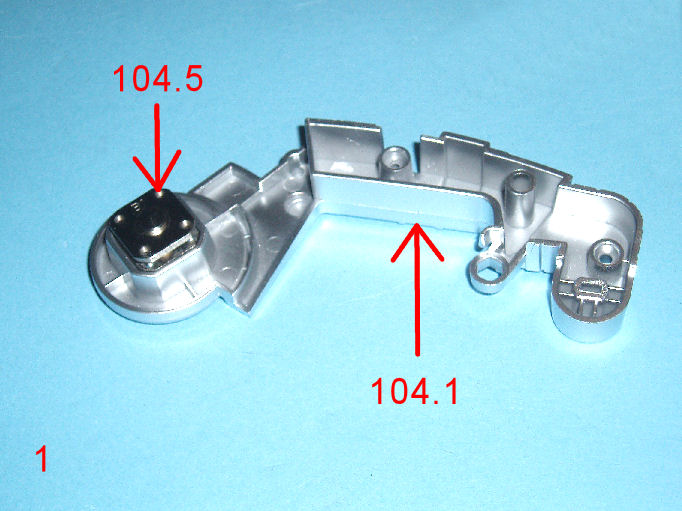

Pic 1: Fit the knee joint spindle 104.5 into the right calf 104.1 as shown.

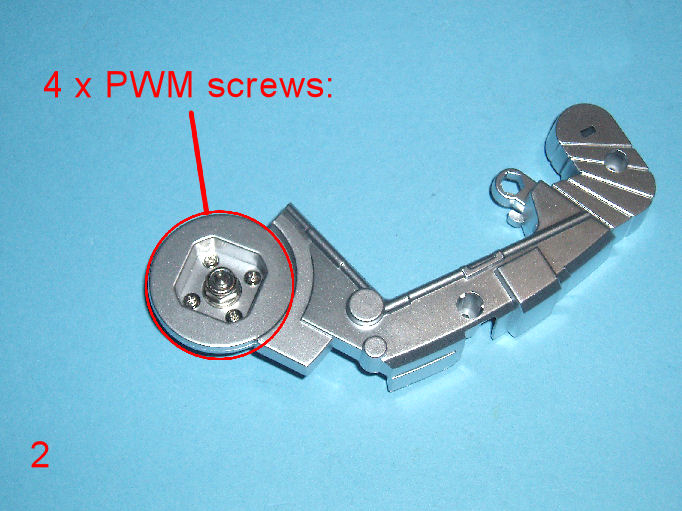

Pic 2: From the other side, fix the parts with 4 x PWN screws.
Pic 3: Fit the internal part 104.4 into the knee joint where indicated.
It will only fit one way.

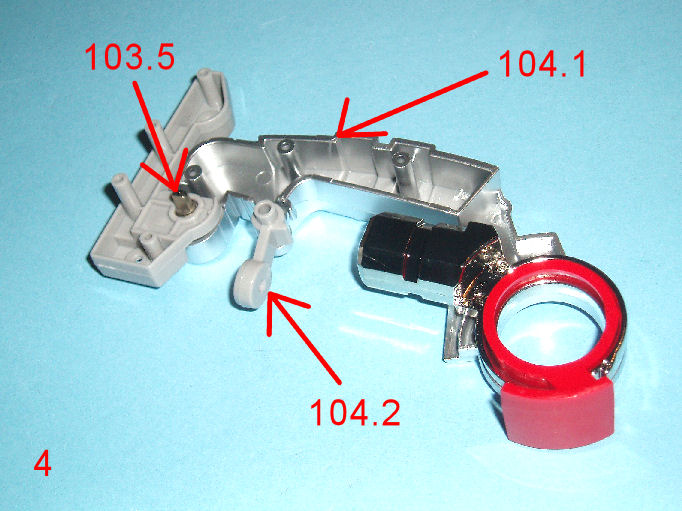

Pic 4: Retrieve the leg assembly from stage 103 and fit the metal spindle 103.5 into the locating hole in the leg 103.2.
Fit the connecting piece 104.2 to the assembly as shown.

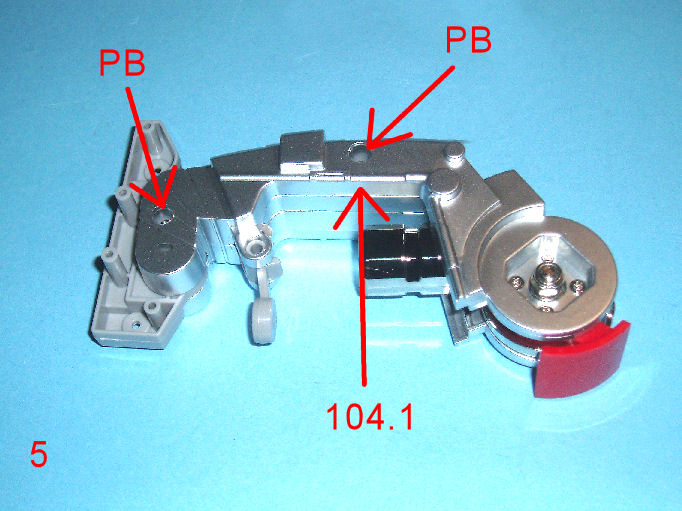

Pic 5: Fit the calf 104.1 to the assembly and fix with 2 x PB screws.
Pic 6: Press-fit the screw cover 104.3 in place.
Store the assembly safely.
roymattblack attached the following image(s):
|
|
|
|
