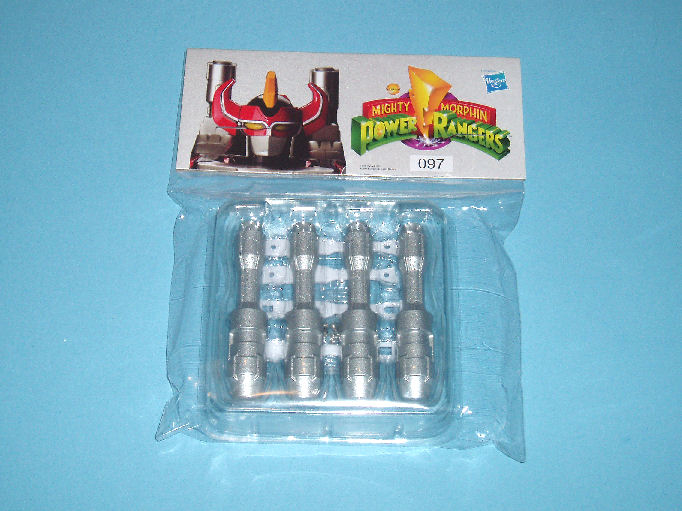

STAGE 97:
Dinozord cannons 1.

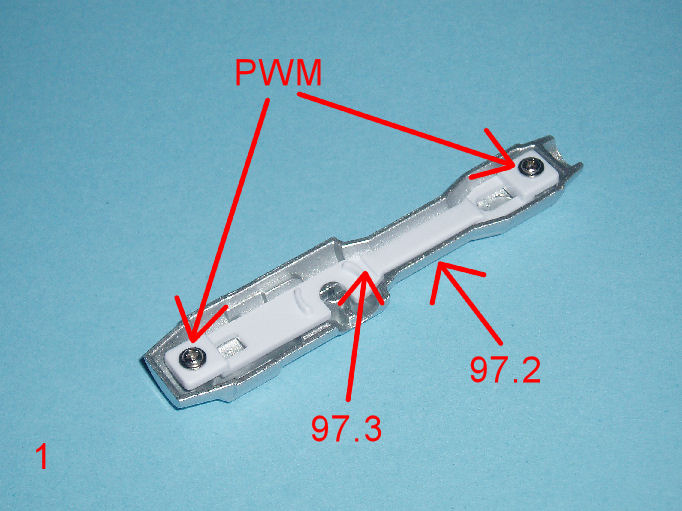

Pic 1: Fit the connecting piece 97.3 inside the cannon half 97.2 as shown and fix with 2 x PWM screws.

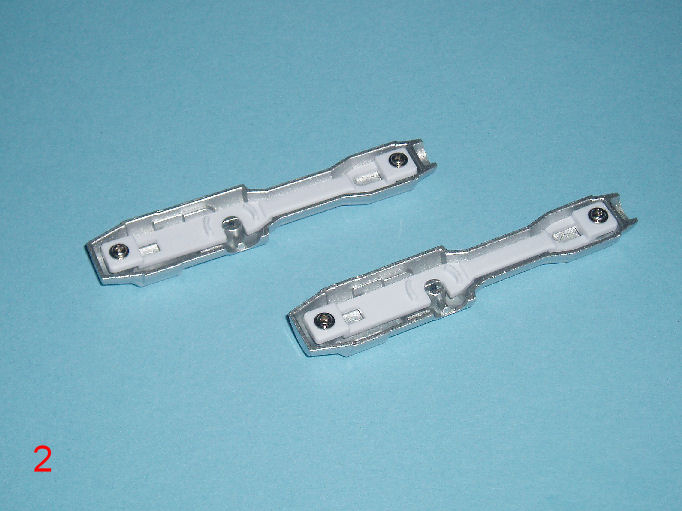

Pic 2: Make two sets the same.

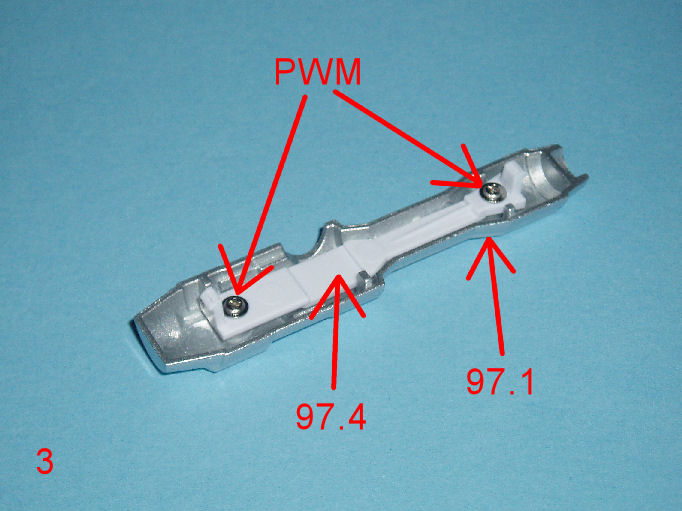

Pic 3: Fit the connecting piece 97.4 inside the cannon half 97.1 as shown and fix with 2 x PWM screws.

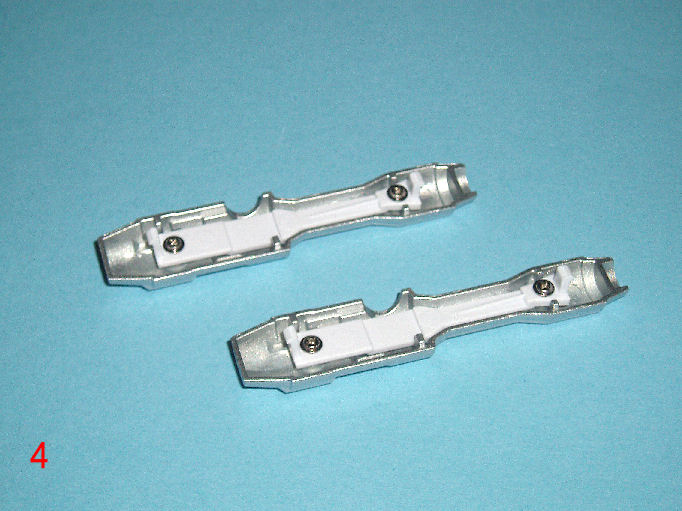

Pic 4: Make two sets the same.

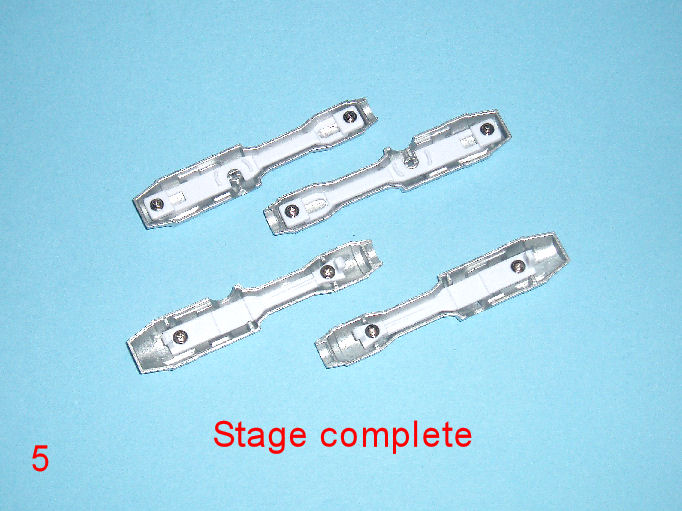

Pic 5: Store the parts safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,176 Points: 15,677 Location: ipswich
|

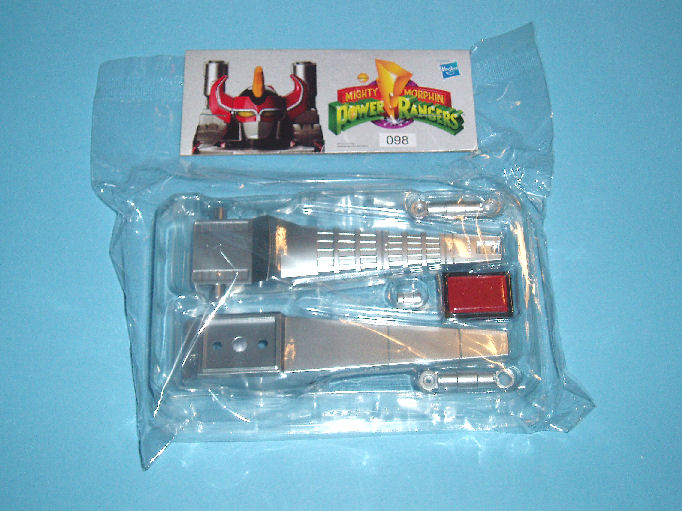

STAGE 98:
Dinozord cannons 2.

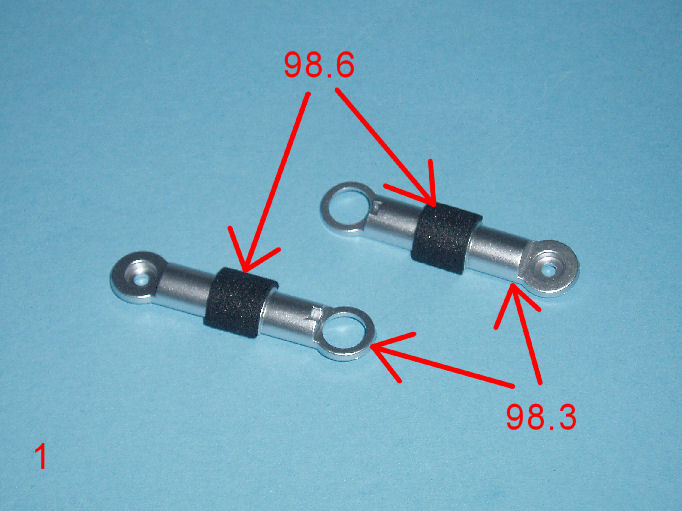

Pic 1: Peel the backing paper off and fit the mount bushings 2 x 98.6 to the two cannon mounts 2 x 98.3.

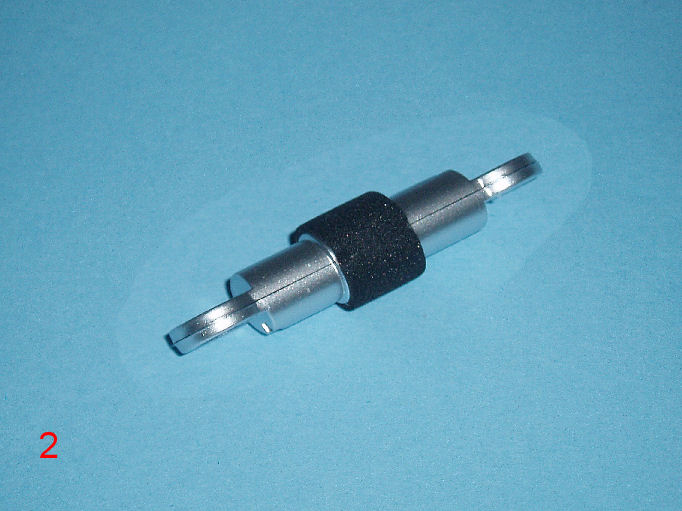

Pic 2: Fit the parts together as shown.

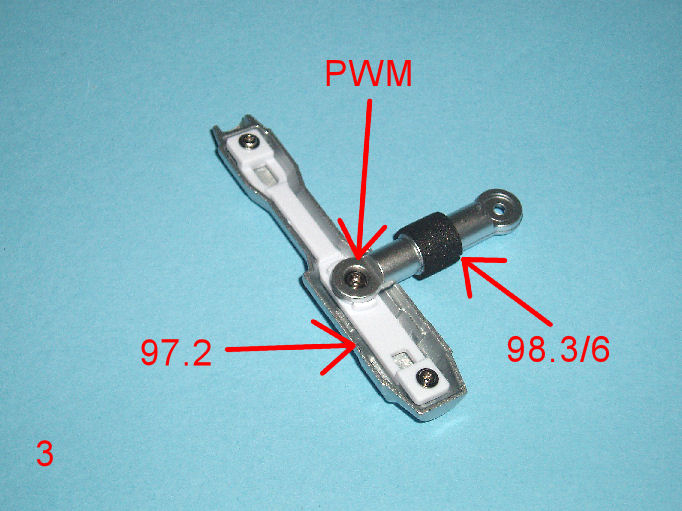

Pic 3: Retrieve one of the gun parts 97.2 from the previous stage and fit the cannon mount, fixing it with 1 x PWM screw.

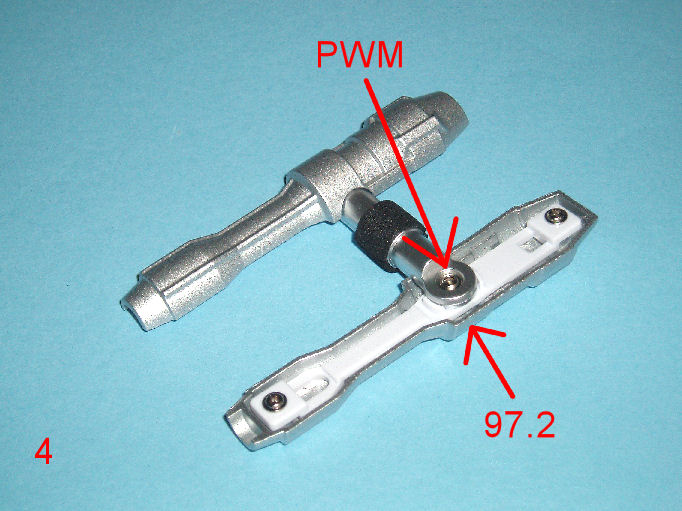

Pic 4: Fit the other gun half 97.2 to the cannon mount and fix with 1 x PWM screw.

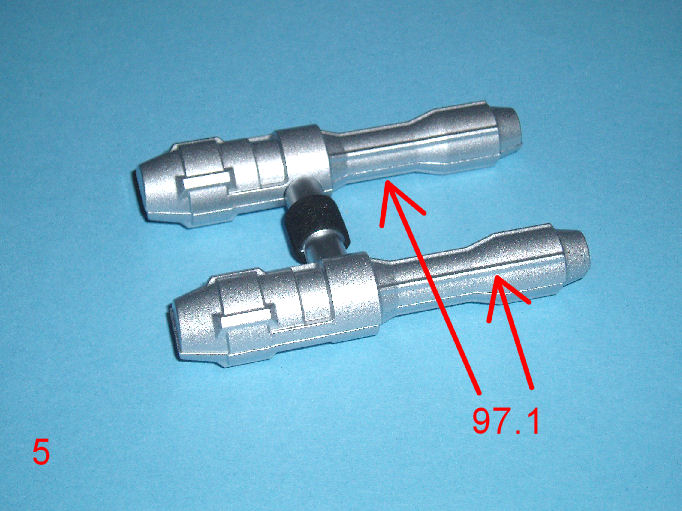

Pic 5: Press-fit the other two gun halves 97.1 onto the assembly.
Pic 6: Fit the cannons into the lower half of the Dinozord tail 98.1
.

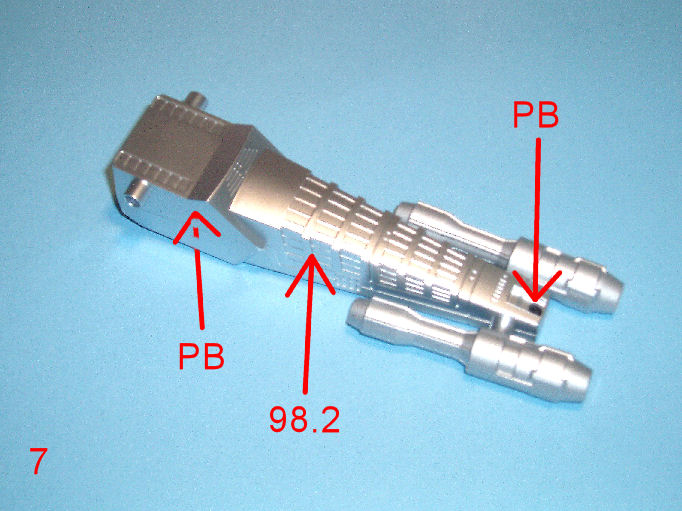

Pic 7: Fit the top of the tail 98.2 and fix with 2 x PB screws from above and below.
Pic 8: Fit the trim panel 98.4 into the tail part 98.1.
Pic 9: Fit the tail trim 98.5 into the tail part 98.2.
Store the assembly safely.roymattblack attached the following image(s):
|
|
|
|
