STAGE 21:
Front cross member.

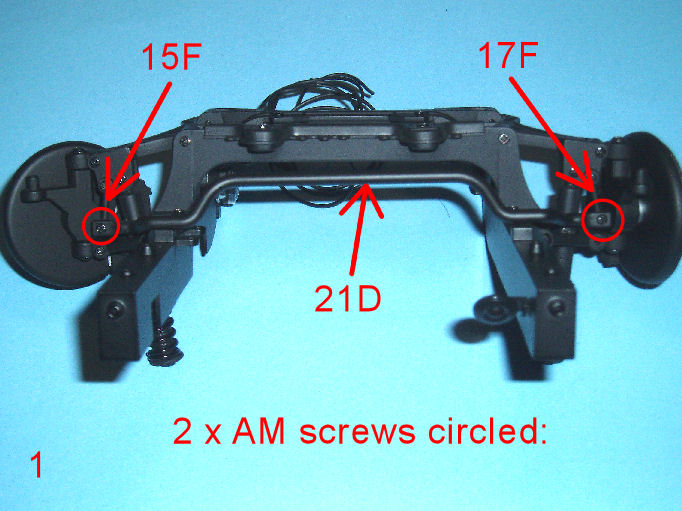

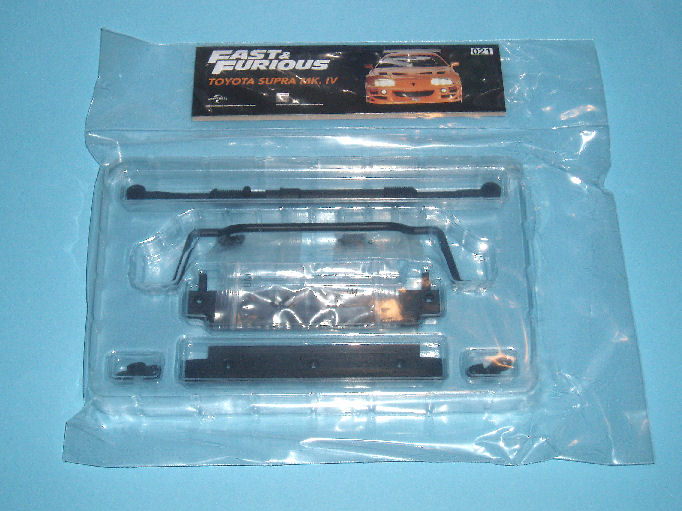

Pic 1: Retrieve the front chassis assembly and locate the stabilizer bar 21D.

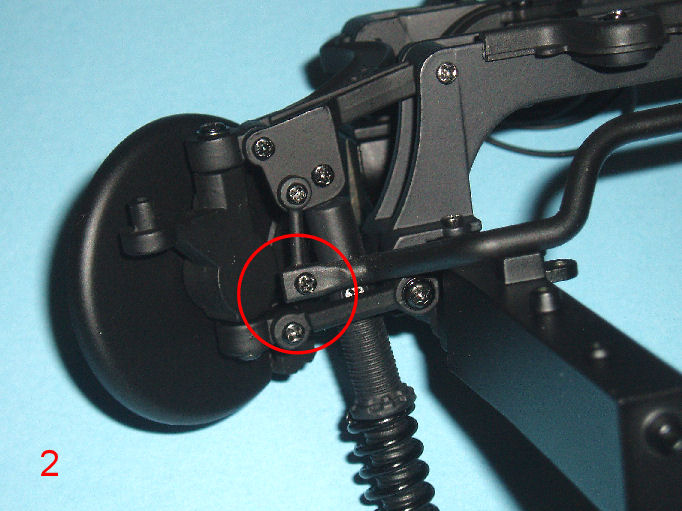

Fit it in place as shown and fix each end to the drop links 15F and 17F using 1 x AM screw in each end.
Pic 2: Detail of the left side.

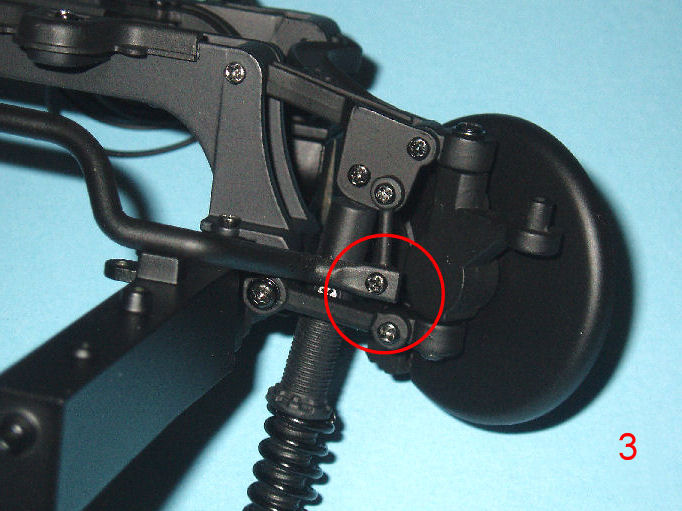

Pic 3: Detail of the right side.

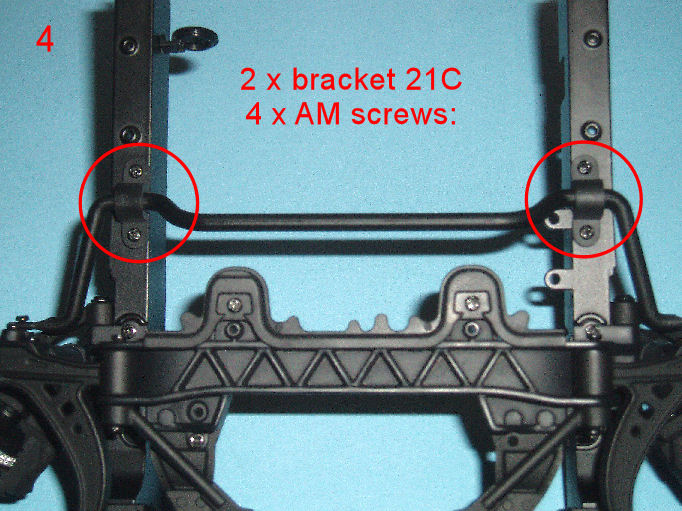

Pic 4: Fit the 2 x securing brackets 21C and fix with 2 x AM screws in each.

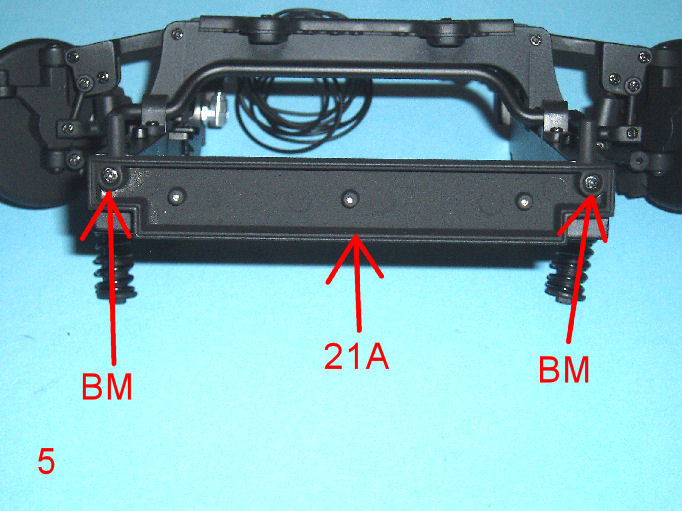

Pic 5: Fit the front cross member 21A as shown and fix using 2 x BM screws.

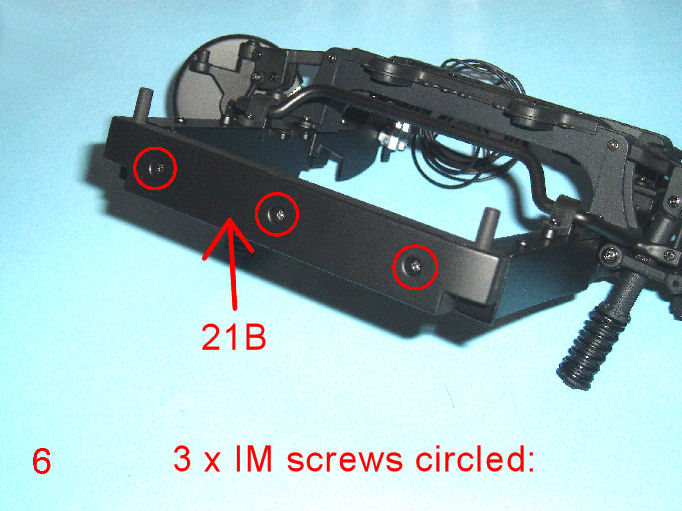

Pic 6: Fit the front panel 21B and fix with 3 x IM screws.

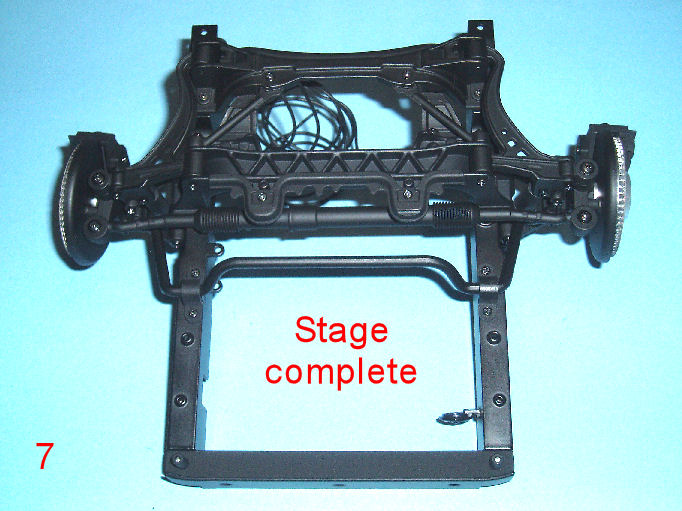

Pic 7: Store the assemble safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,176 Points: 15,677 Location: ipswich
|
STAGE 22:

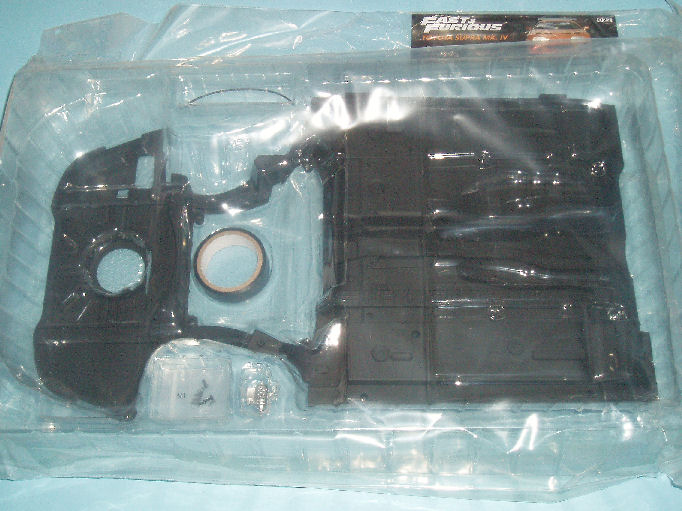

Chassis centre.

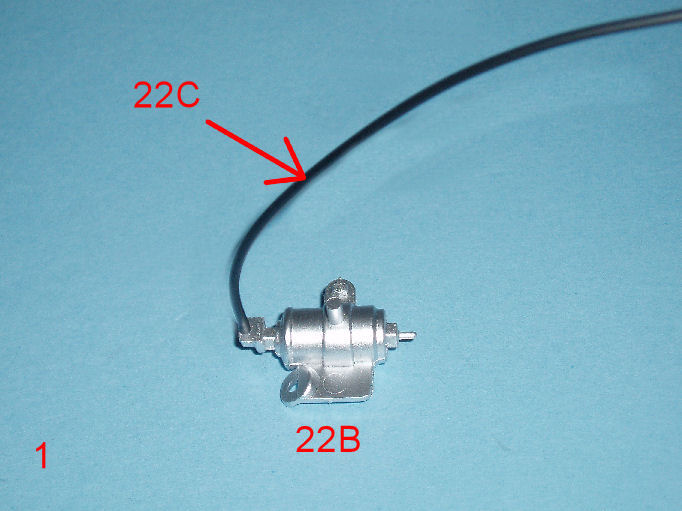

Pic 1: Fit the fuel line 22C to the filter 22B.

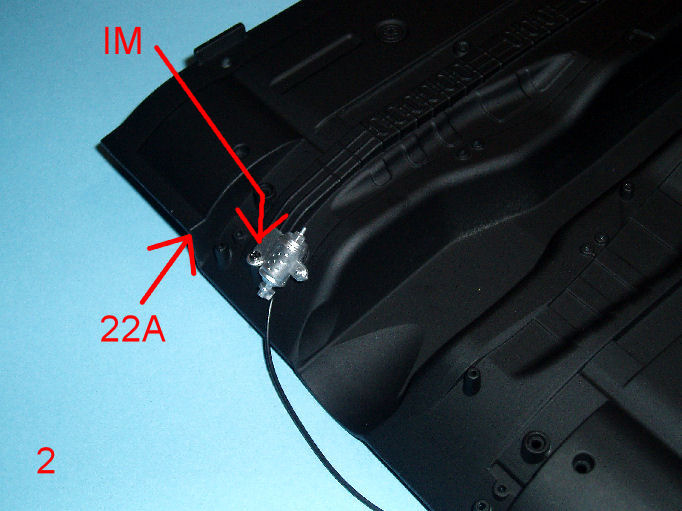

Pic 2: Fit the filter to the front of the main chassis 22A as shown and fix with 1 x IM screw.
Pic 3: Fit the front chassis assembly to the main chassis 22A as shown and fix with 2 x BM screws on each side.

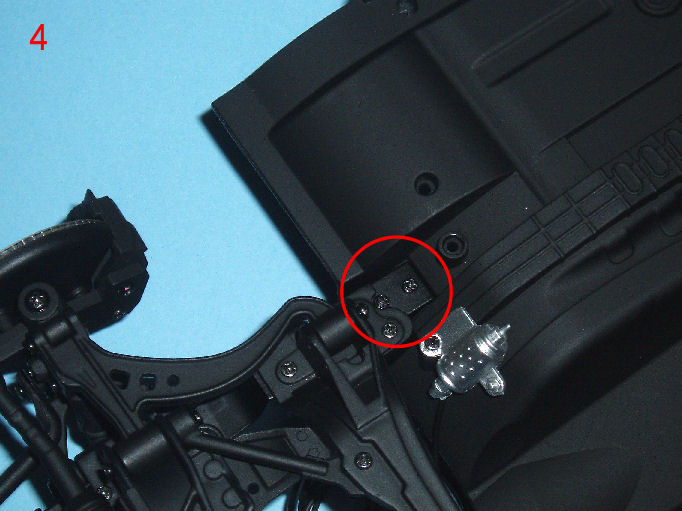

Pic 4: Close up of the left side fixings.

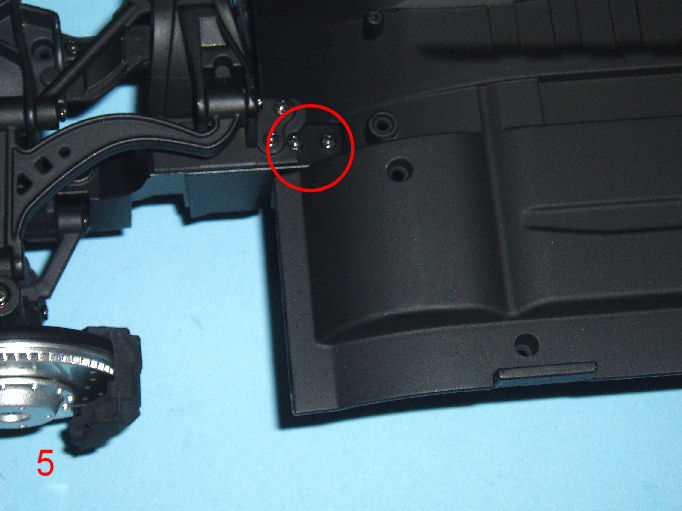

Pic 5: Close up of the right side fixings.

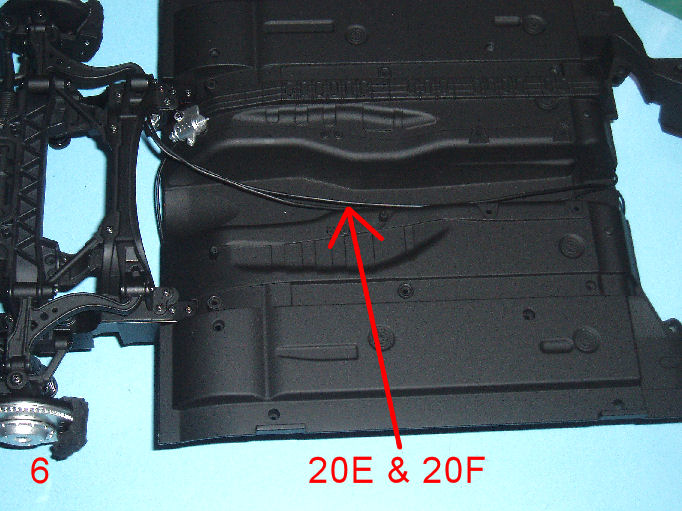

Pic 6: Run the two brake lines 20E and 20F along the transmission tunnel as shown.

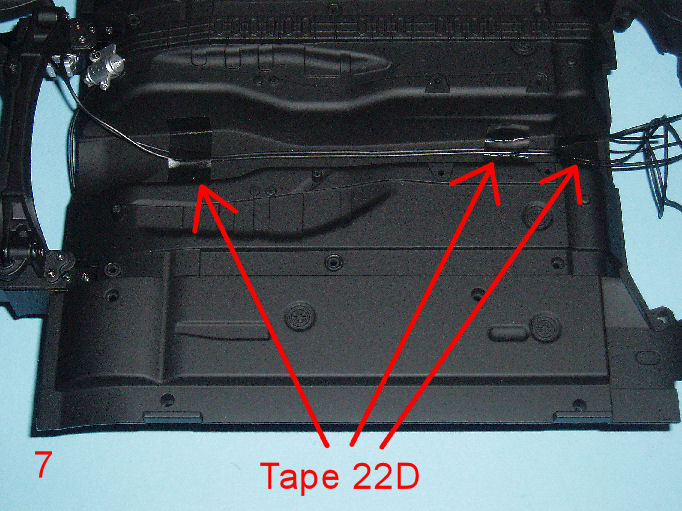

Pic 7: Fix the lines in place with pieces of tape 22D.
Store the assembly safely for now.roymattblack attached the following image(s):
|
|
|
|
