Issue 9

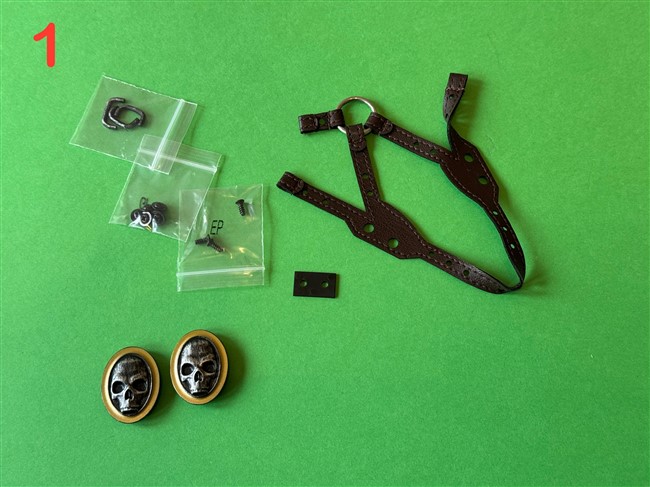

Picture 1 shows the contents of this issue.
The Strap of the Left Shoe

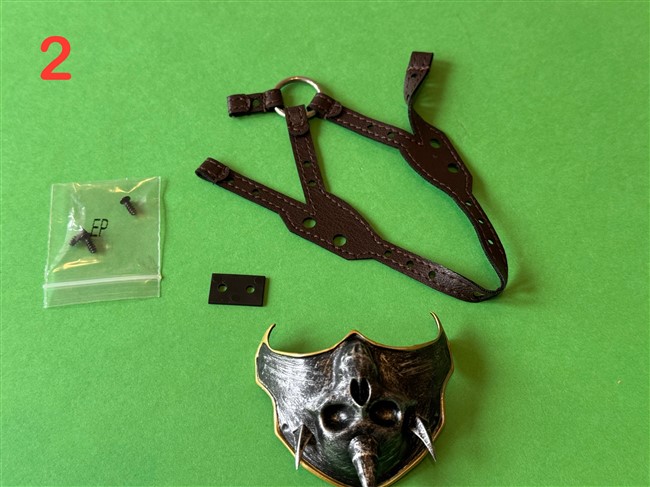

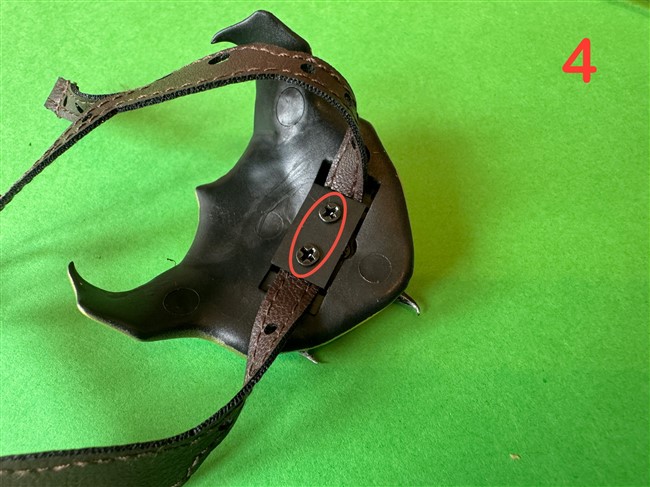

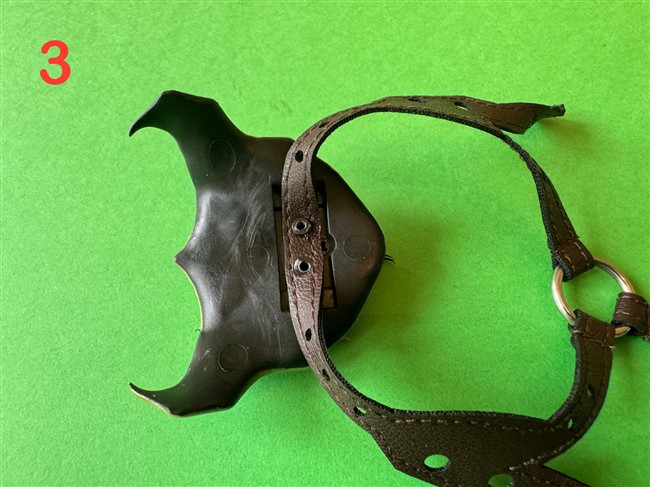

Retrieve the left shoe heel, picture 2, and place the strap (9D) into the back. Place the mounting plate (9C) over the two holes and secure in place using 2 x EP screws, pictures 3 and 4.

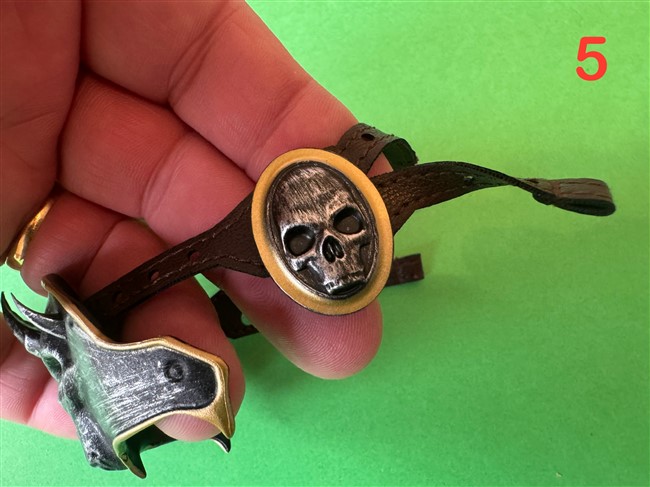

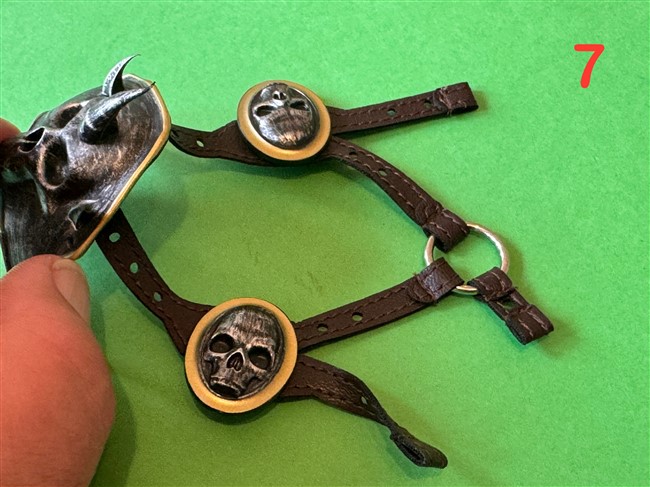

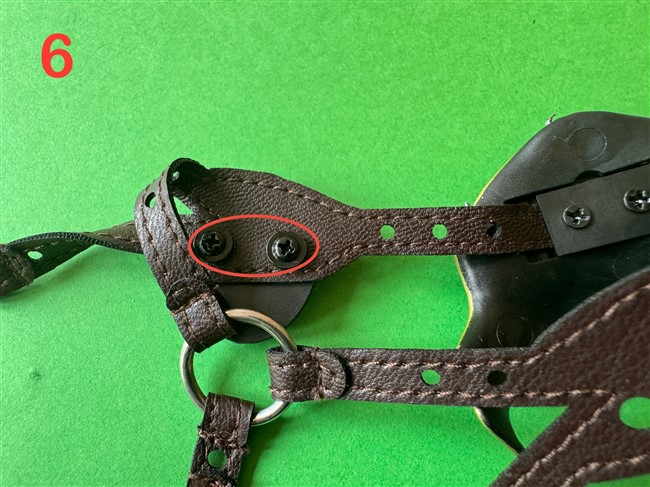

Place the skull ornaments (9A) on each side of the strap and secure in place using 2 x GP screws, pictures 5, 6 and 7.

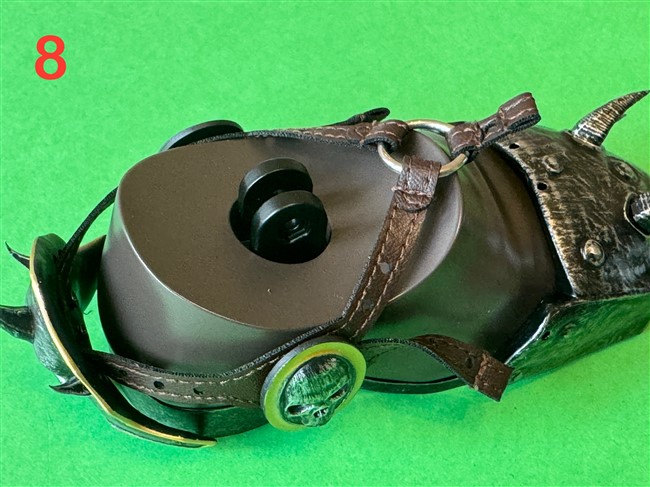

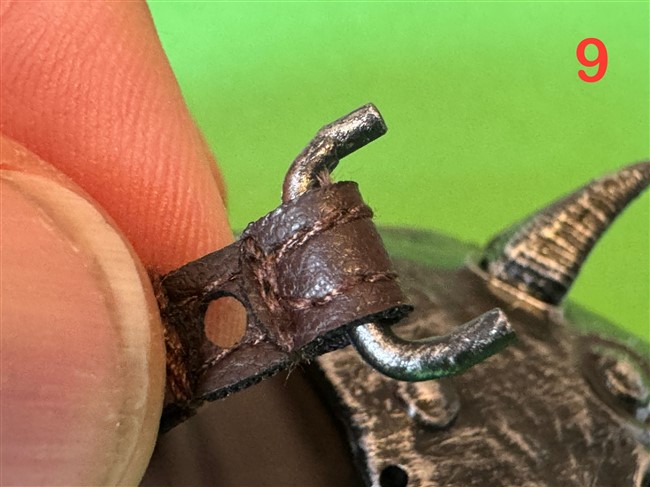

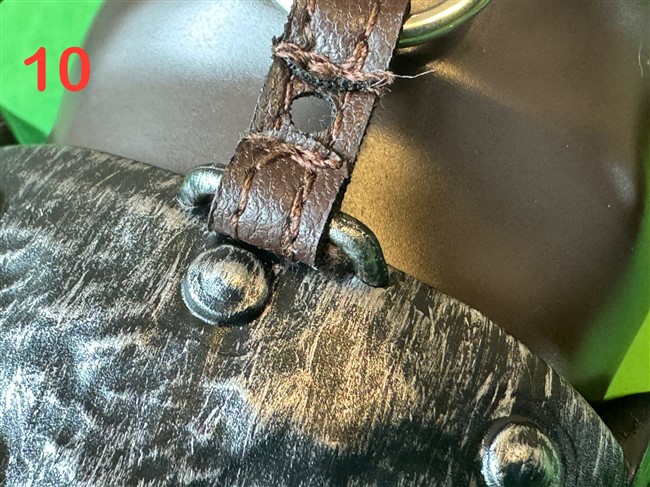

Retrieve the shoe assembly from issue 8 and place the strap assembly over the shoe as shown in picture 8. To secure the strap in place over the shoe, take the central attachment loop (9G) inside the central tab of the strap, picture 9. Press the loop firmly into the two holes on the top centre of the show, picture 10.

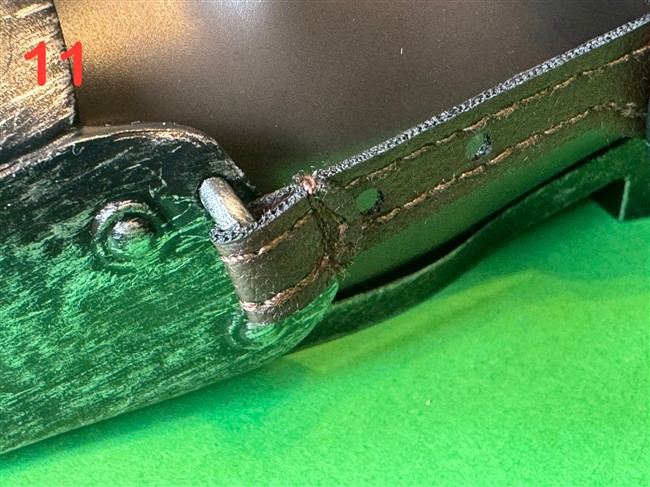

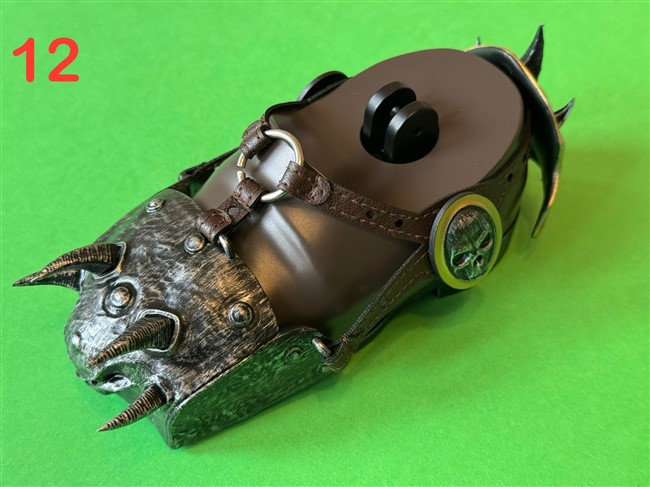

Take the two other side taps and place the side loops into the straps as you did with the central tab. Push fit the loops in place on each side of the shoe as shown in pictures 11 and 12.

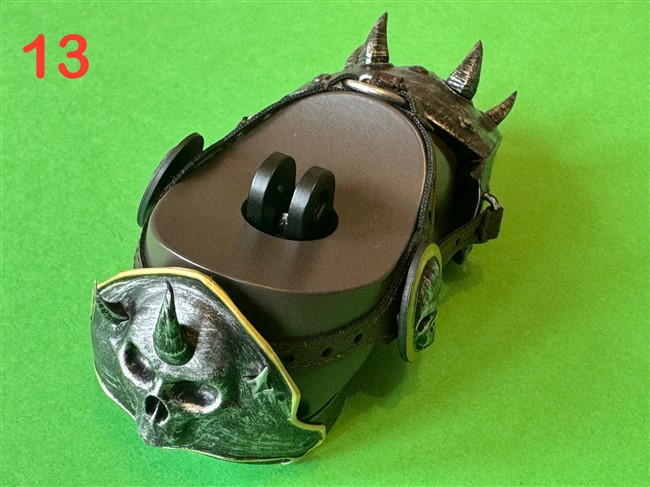

Picture 13 shows the back of the shoe.That completes the assembly for this issue.Markwarren attached the following image(s): Regards
