Issue 107

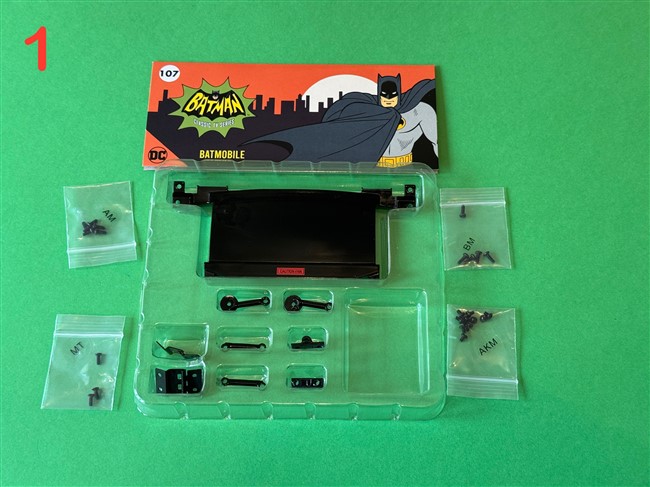

Picture 1 shows the contents of this issue.
Fitting the Hinges

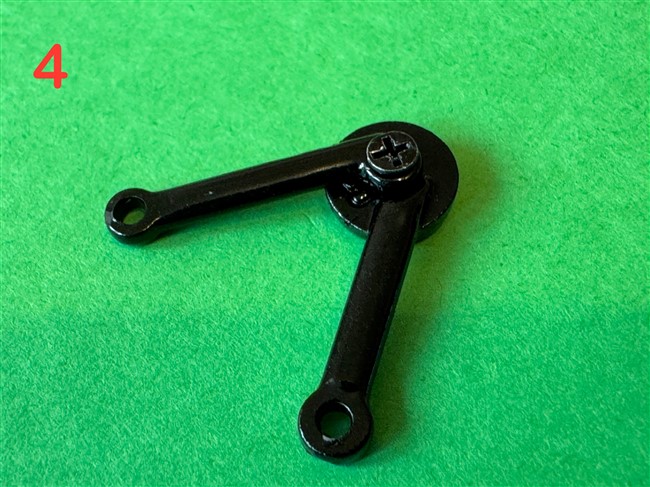

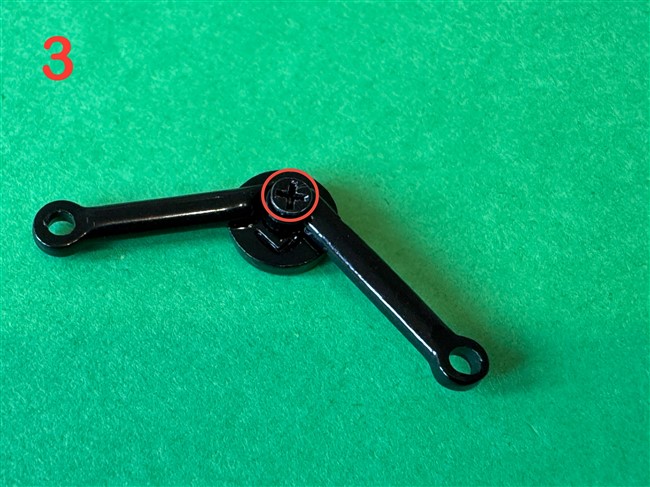

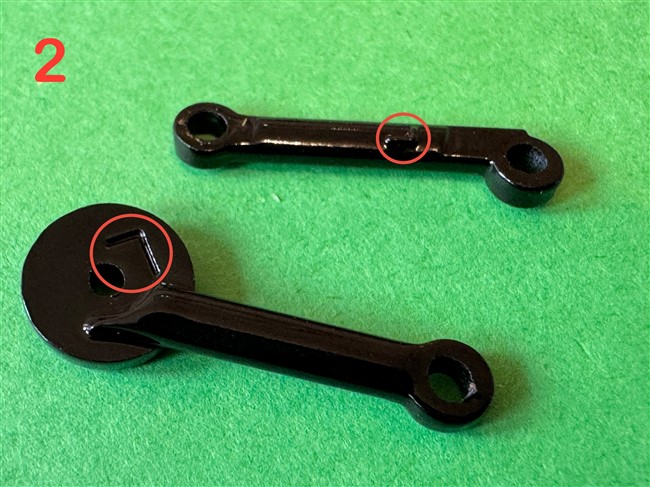

Take the front left hinges (107C &D). These are marked with the letter “L”, and secure the two by using an TM screw, pictures 2 and 3. Do the same with the right-side hinges, marked “R” (107E & F), picture 4.

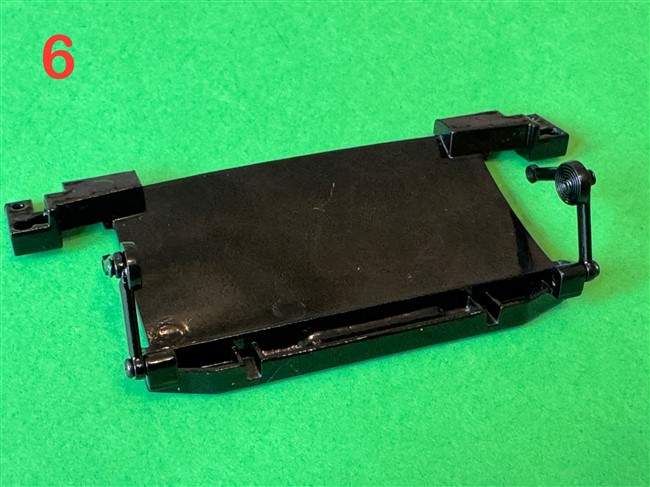

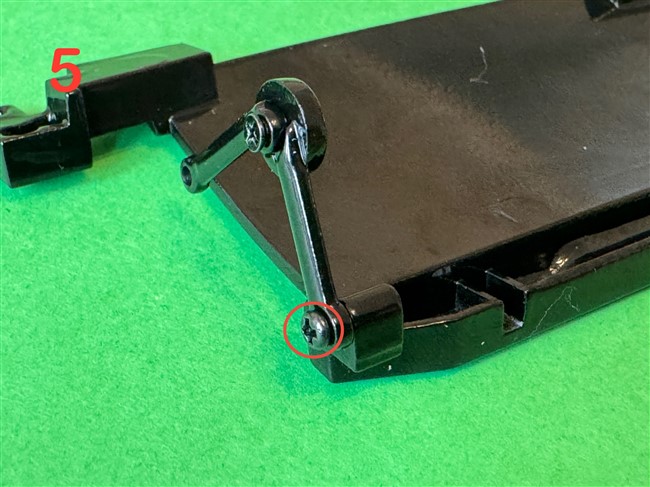

Using 2 x AM screws fit both the left and right hinge assemblies to the hood extension (107G), pictures 5 and 6.

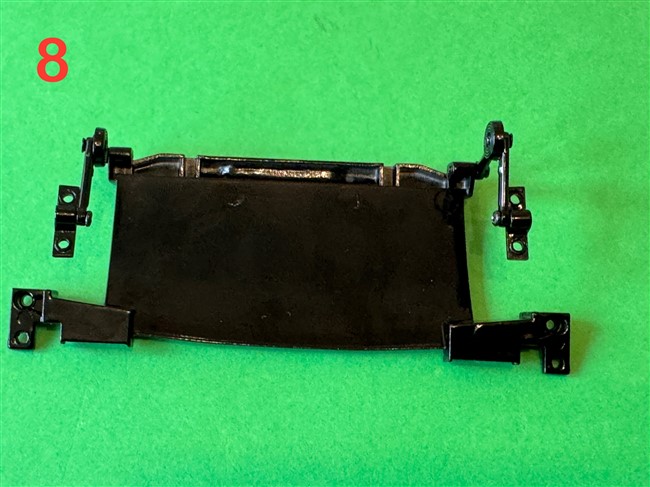

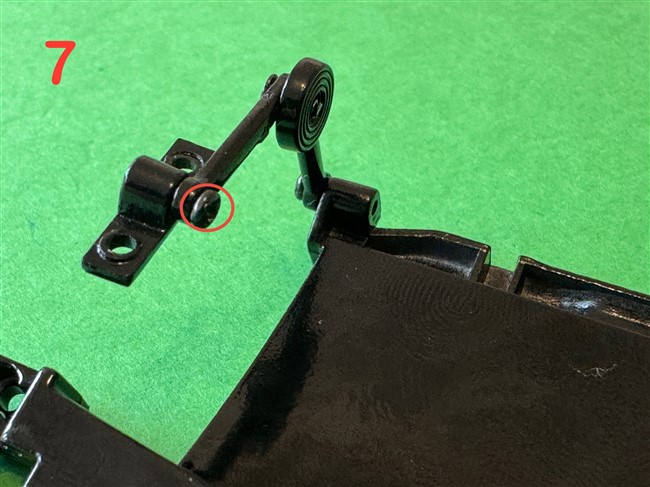

Fit the front left and right hinges parts (107A & B) using an AM screw, pictures 7 and 8.

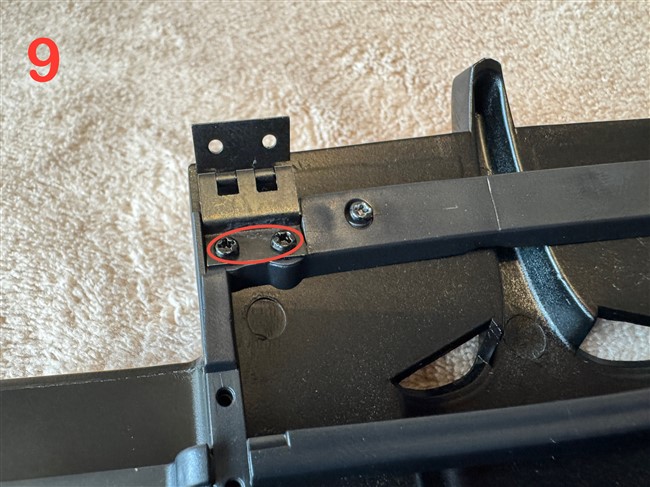

Next, secure the two hood connection plates (107H) to the underside of the hood using 4 x AKM screws, pictures 9 and 10.

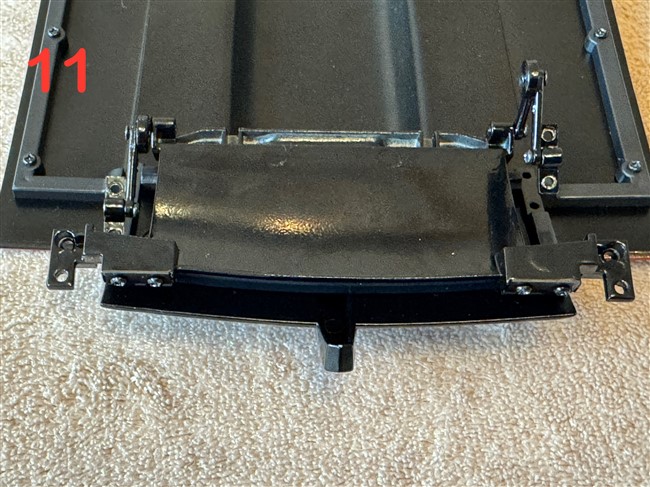

Use four more AKM screws to attach the hood extension to the two hood connector plates, picture 11.

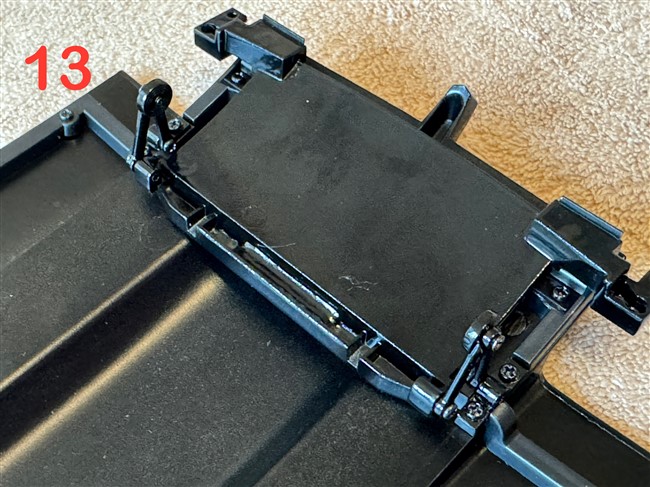

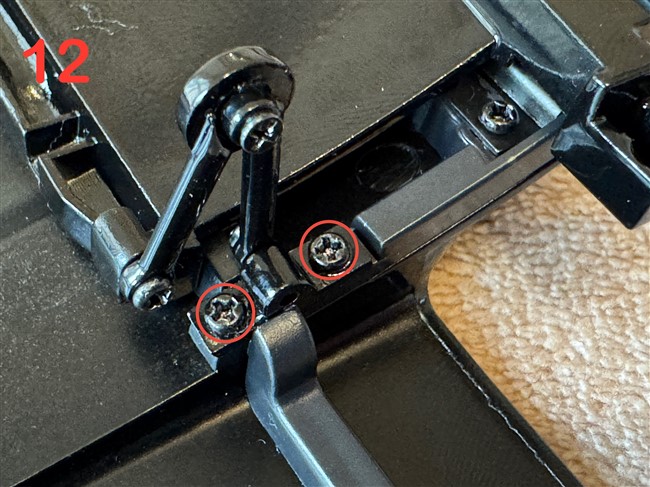

Finally, attach the two hinge parts “A” to the underside of the hood as shown in pictures 12 and 13.

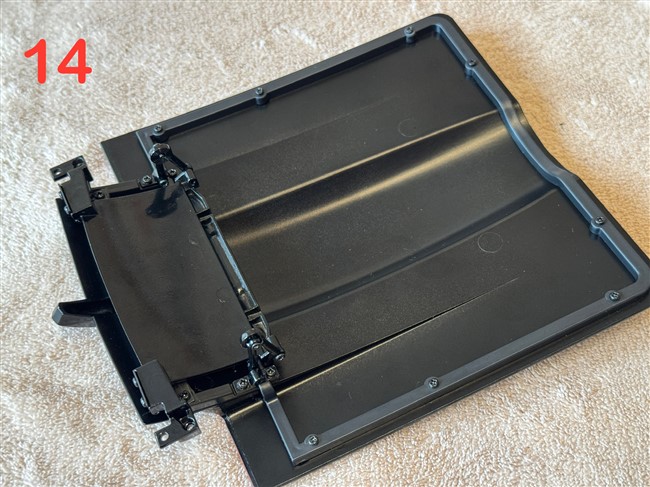

Picture 14 shows the completed assembly for this issue.
